Smart Targets

with reflective target RS50+RS51*, RS60+RS61*
with crosshair RS70+RS71*

(*self-adhesive)

Reference points for BIM and even more

These markers offer a wide range of applications and fully comply with all requirements for use on BIM-compliant construction sites.

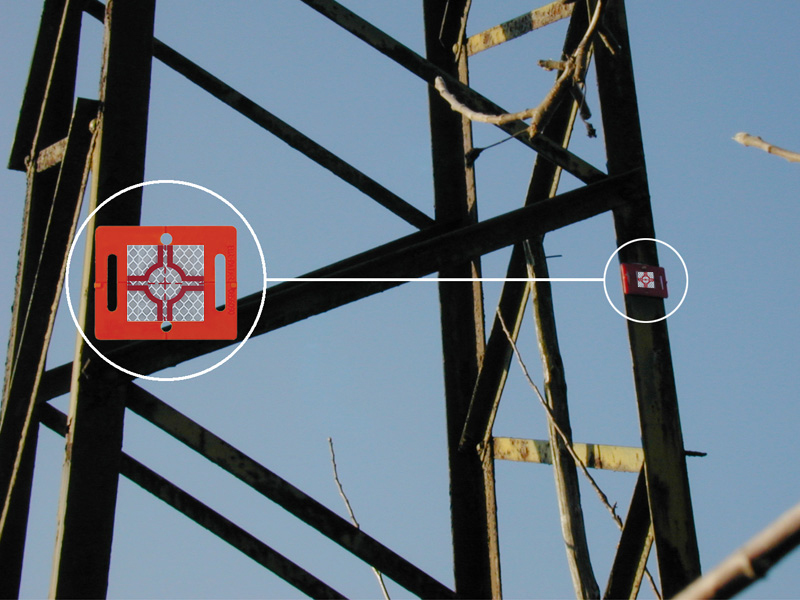

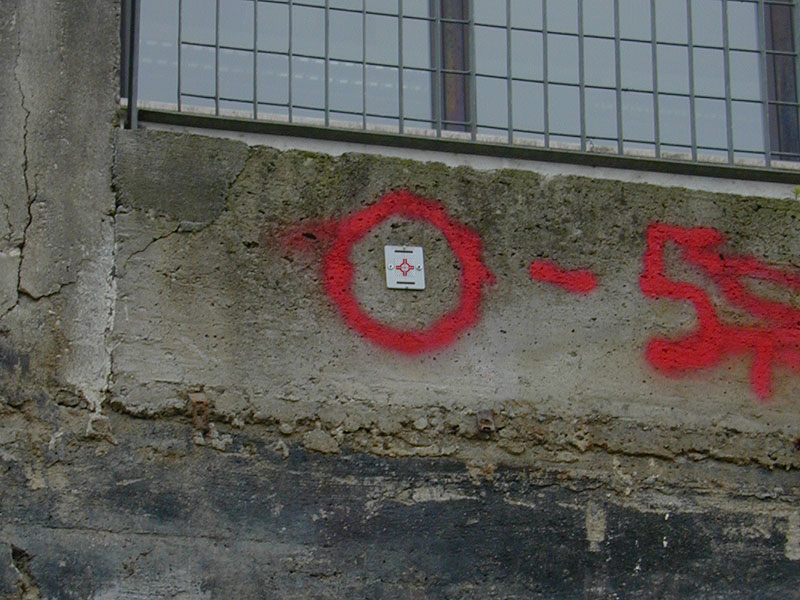

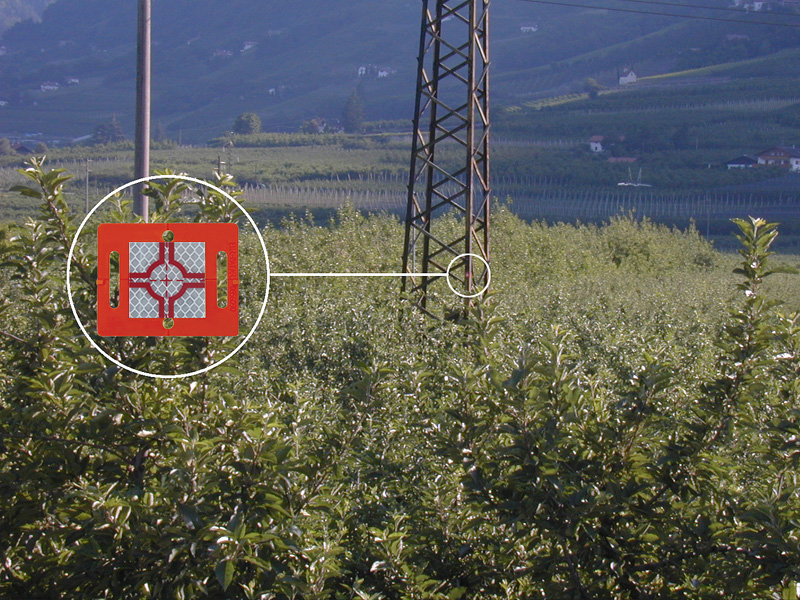

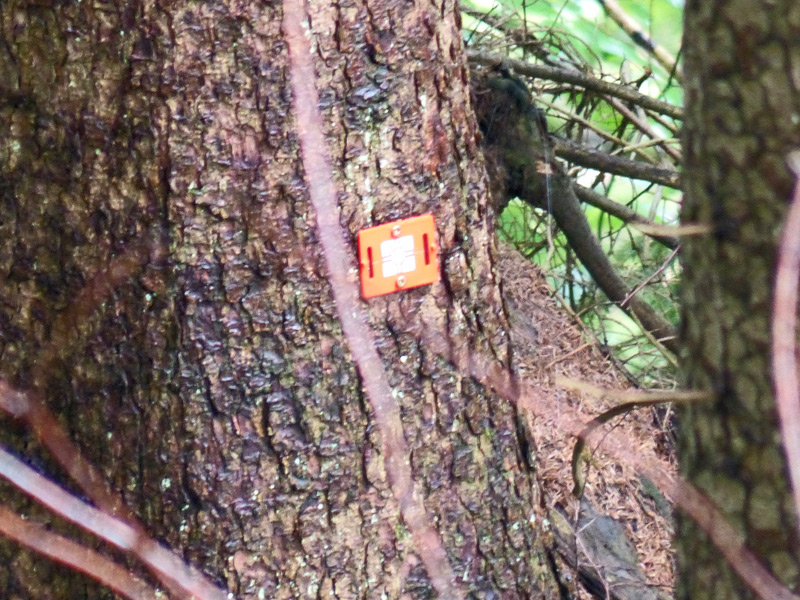

In outdoor areas, they can be permanently fixed at any desired point and primarily serve as reference points for stationing with total stations or for settlement measurements. Indoors, they clearly document heights and axes. Axes can be transferred to the next floor easily and accurately using a laser or plumb line in stairwells or through an opening.

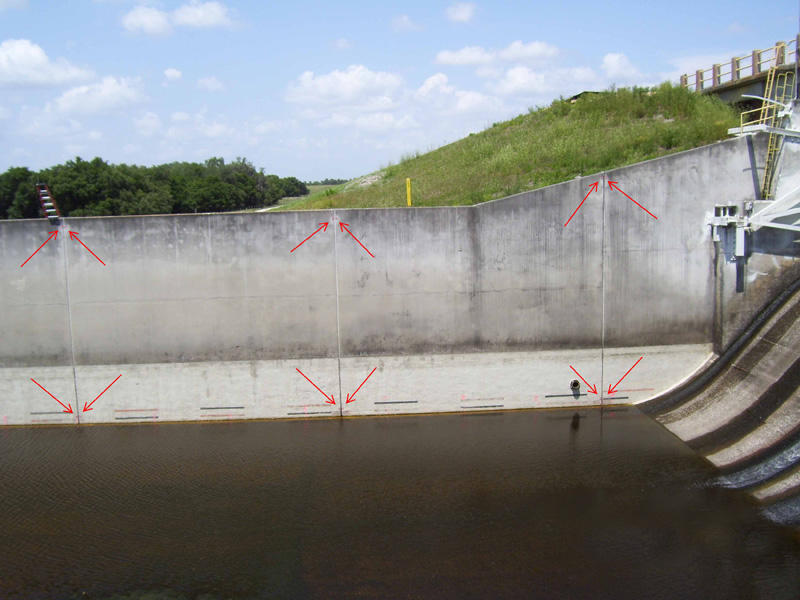

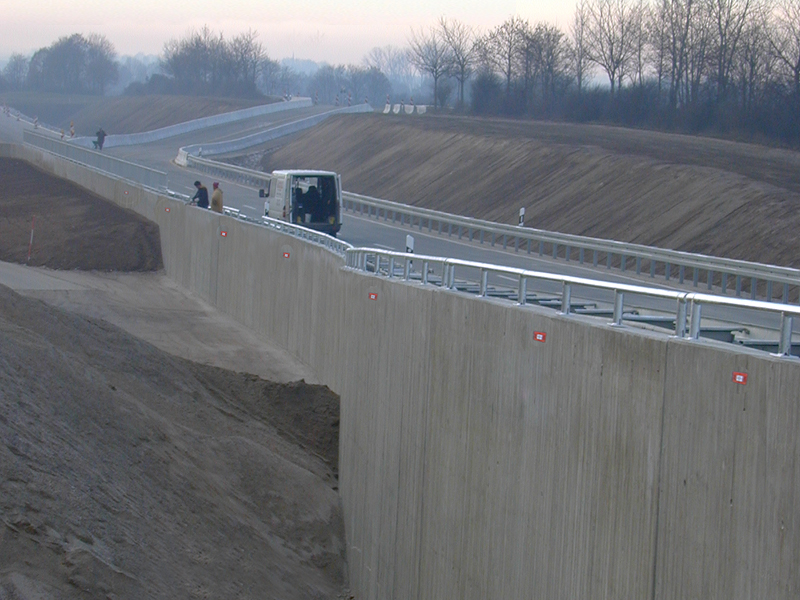

When fixed to façades, the Smart Targets can continue to be used by surveyors and foremen and are utilized by façade installers for aligning glass and stone façades. Due to their material quality and durability, the Smart Targets are also excellent for long-term monitoring of buildings, bridges, retaining walls, and more.

To ensure the survey point remains secure over an extended period, each reflective marker features a crosshair imprinted on the backing plate. If the reflective target is damaged, it can
be easily replaced, allowing the original survey point to be restored quickly, easily, and cost-
effectively.

For distance measurements with total stations, use only targets with reflective sheets.
RS50+RS51, RS60+RS61: The ranges are dependent on the device and can be affected by weather and environmental conditions.

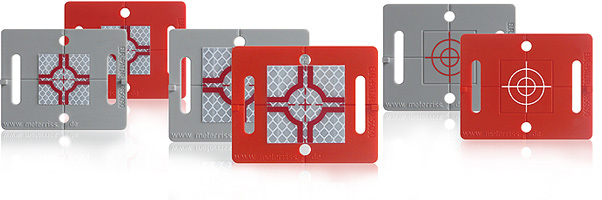

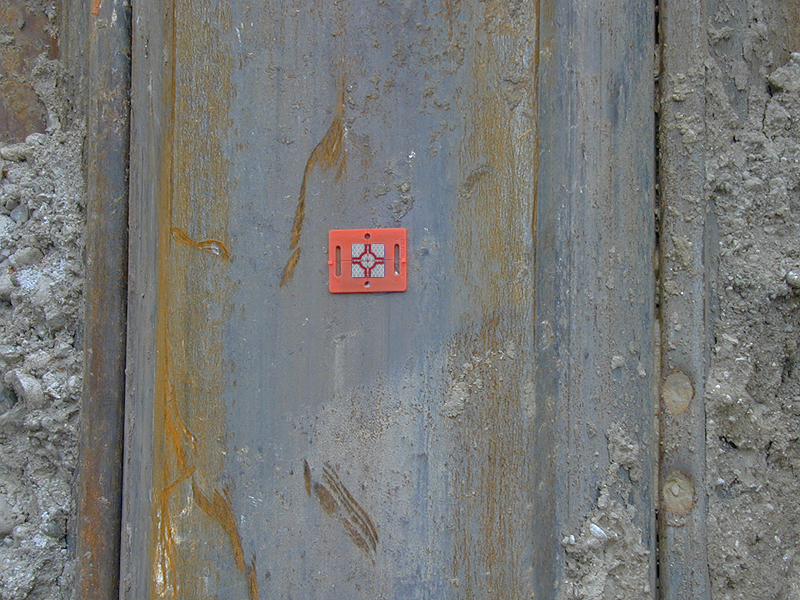

Smart targets RS50/51* with reflective target 30 x 30 mm, 75 mm x 60 mm
Smart targets RS60/61* with reflective target 40 x 40 mm, 75 mm x 60 mm

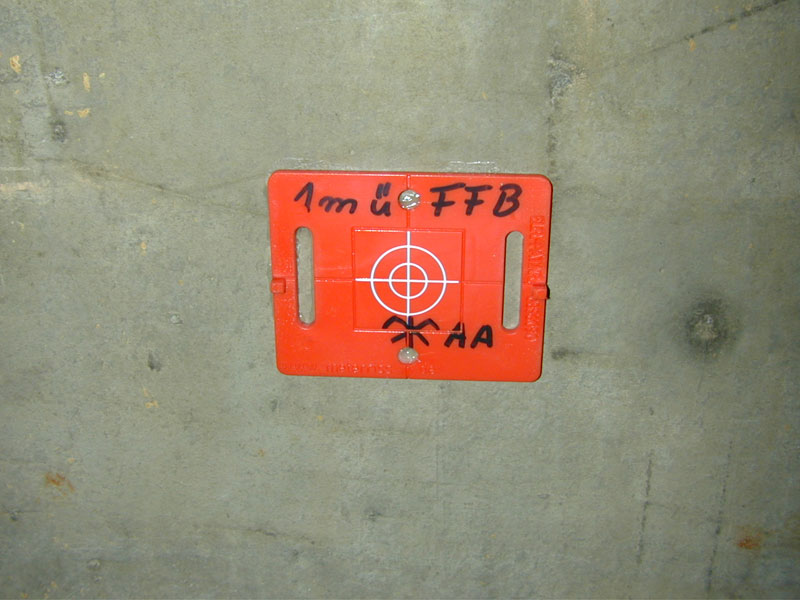

Smart targets RS70/71* with crosshair, 75 mm x 60 mm

Dimensioning file RS50-51, RS60-61.pdf and RS70-71.pdf for download.
Here you find a dimensioning file for each RS product
