Scanner and Lidar Target

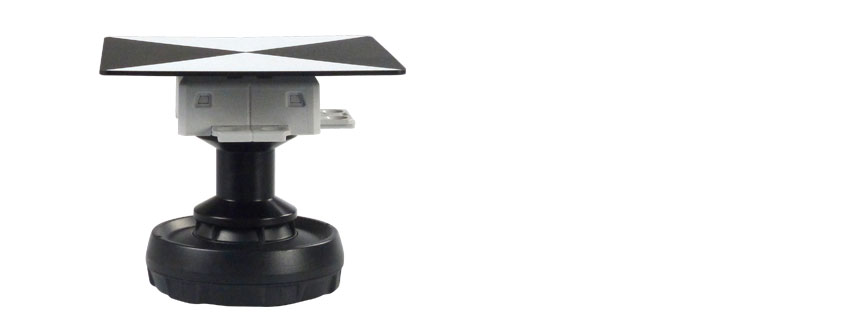

RSL-X93M* (*magnetic)
Quality and precision define this target, and thanks to the special magnetic base, you can utilize the full range of our OPFA system.
Some scanners or Lidar-based instruments prefer reference points that can be located directly head-on. The RSL-X93M* target is ideal for these requirements.
Additional advantages:
- Perfect for NavVis devices, as you can stop at the exact survey point, see illustration
on the left - Also ideally suited for use with Leica, Geomax, Faro and ZF (Zoller+Fröhlich) scanners
- Greater precision as the fixed point can be surveyed tachymetrically in advance, e. g. with the RSMP395M* mini prism
- Fixed points for connecting several positions
- Assignment of spatial reference information to a data set
- Part of our surveying accessories system “One reference point for all instruments”
| A strong magnetic base gives the products that extra capability: |
|
| The cavity on the magnetic base for use in conjunction with the RSFP-X90 to RSFP-X99 fixed point system makes the targets universally applicable |
RSL-X93M* Tilting axis height: 100 mm
The videa shows the use of the targets in combination with a NavVis instrument. Reference points for sockets RSFP-X90-30 to 36 and the suction cup RSSV-X90 are particularly very popular for indoor applications.
|
|
||
| Thanks to HANACK UND PARTNER mbB for this video! |
Dimensioning file RSL-X93M.pdf for download.
Here you find a dimensioning file for each RS product.
