Reference Point Series with Magnetic Base

RSMF10 to RSMF16 and RSMF50 to RSMF56

For the quick and easy use of reference points on magnetic surfaces, we have developed the product series RSMF10 to RSMF16 and RSMF50 to RSMF56.

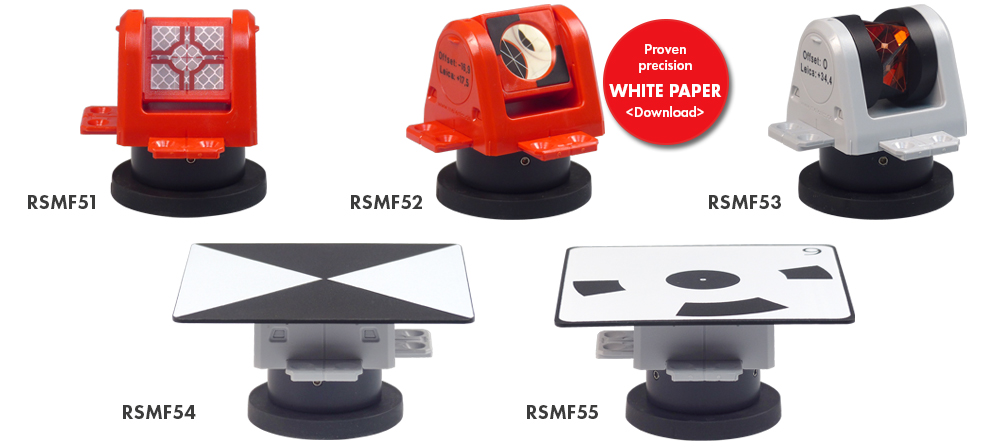

Following an overview of the product series RSMF50 to RSMF56

On steel construction or on steel masts and columns, reference points can be created in the simplest way using these products.

Installation Step by Step:

• The target or prism is placed at the desired position using the magnetic adapter. This already creates the reference point itself.
• When using the version with prisms, they can now be precisely aligned to the instrument but can also be rotated and tilted in any direction if needed, without changing the reference point.
• Scanner and drone targets are also available for the system and have the same XYZ coordinates when in use – see animation.
• If the reference point is used over a longer period, it can be protected from dirt with a protective cap.
• Important: The strong magnet itself forms the reference point. This eliminates the need for gluing, cleaning, or drying the surface!
