Laser Scanner Targets with Swivel and Tilt Function

RSL420M and RSL422M

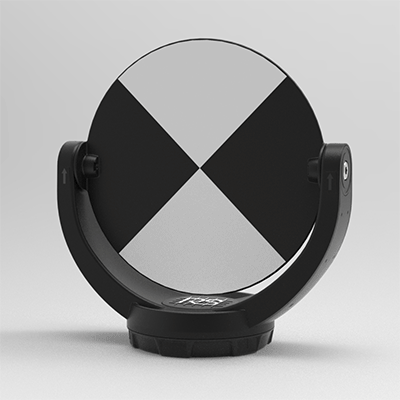

First-class workmanship, a high level of precision and a special magnetic base make these targets something special:

  • Ball bearing joints allow the laser scanner target to be aligned smoothly in any direction while always remaining precisely on axis and in position.
  • The target can be used as a scanner or drone target.
  • Available in two versions:
    A) Article RSL420M* – printed on one side with offset 0 and
    B) Article RSL422M* – printed on both sides with offset +1.5 mm
  • Fixed points for linking several viewpoints
  • Assignment of spatial reference information to a geodata set
  • Suitable for inside and outside use
A strong magnetic base gives the products that extra capability:
The cavity on the magnetic base for use in conjunction with the RSFP-X90 to RSFP-X99 fixed point system makes the targets universally applicable
Technical data:
• Diameter: Ø 145mm  • Tilting axis height: 100 mm  • Weight: 500 g



RSL422M on tribrach In conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters allows the laser scanner target to be placed on any standard tripod or tribrach. RSL422M over RSMP380 In conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters allows the laser scanner target to be placed exactly over an RS Mini Prism. RSL422M on suction cup RSSV-X90 Enables the use of the laser scanner target on any smooth surface such as glass or smooth furniture fronts without drilling or gluing!

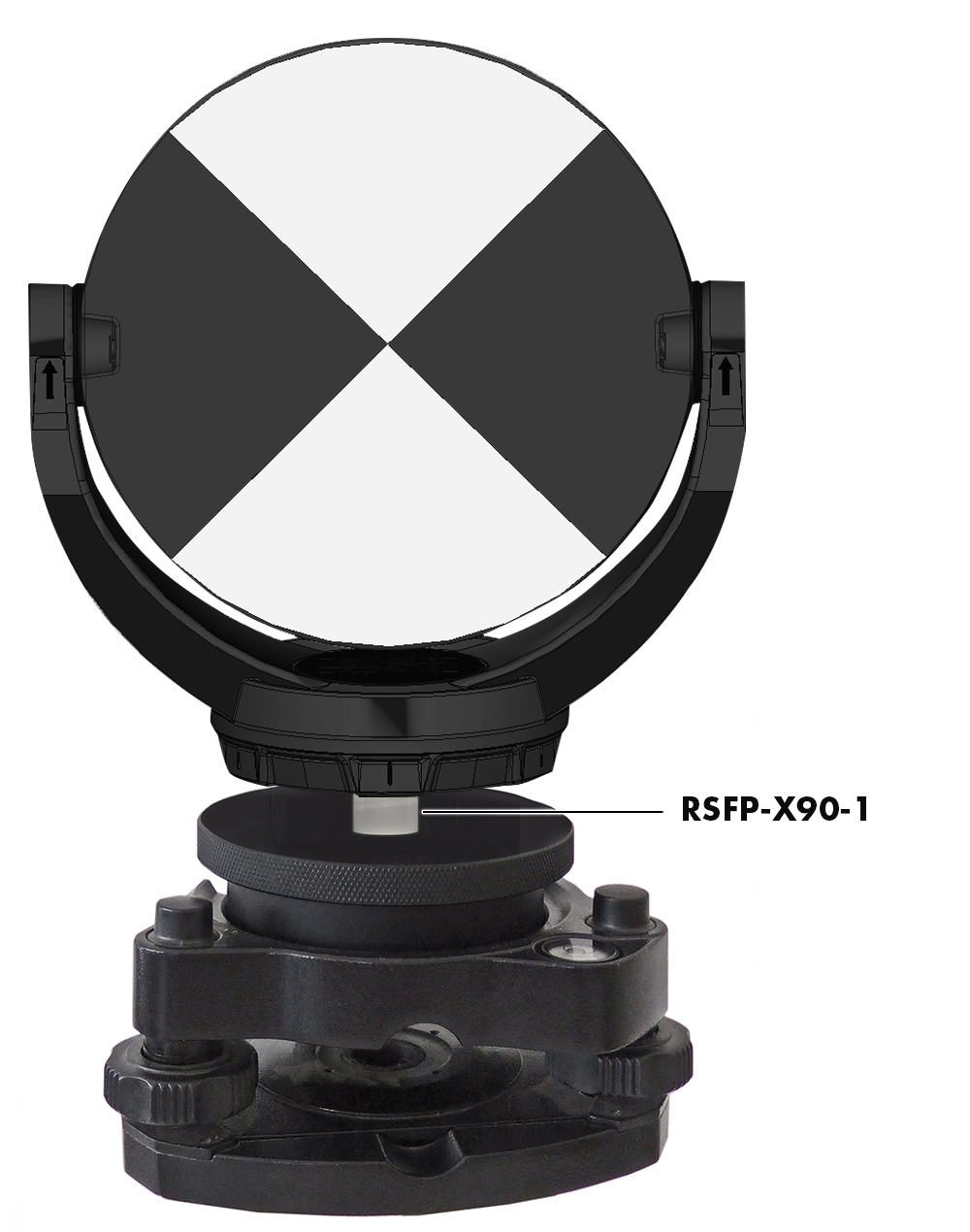

RSL422M on tribrach

In conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters allows the laser scanner target to be placed on any standard tripod or tribrach.



RSL422M over RSMP380

In conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters allows the laser scanner target to be placed exactly over an RS Mini Prism.

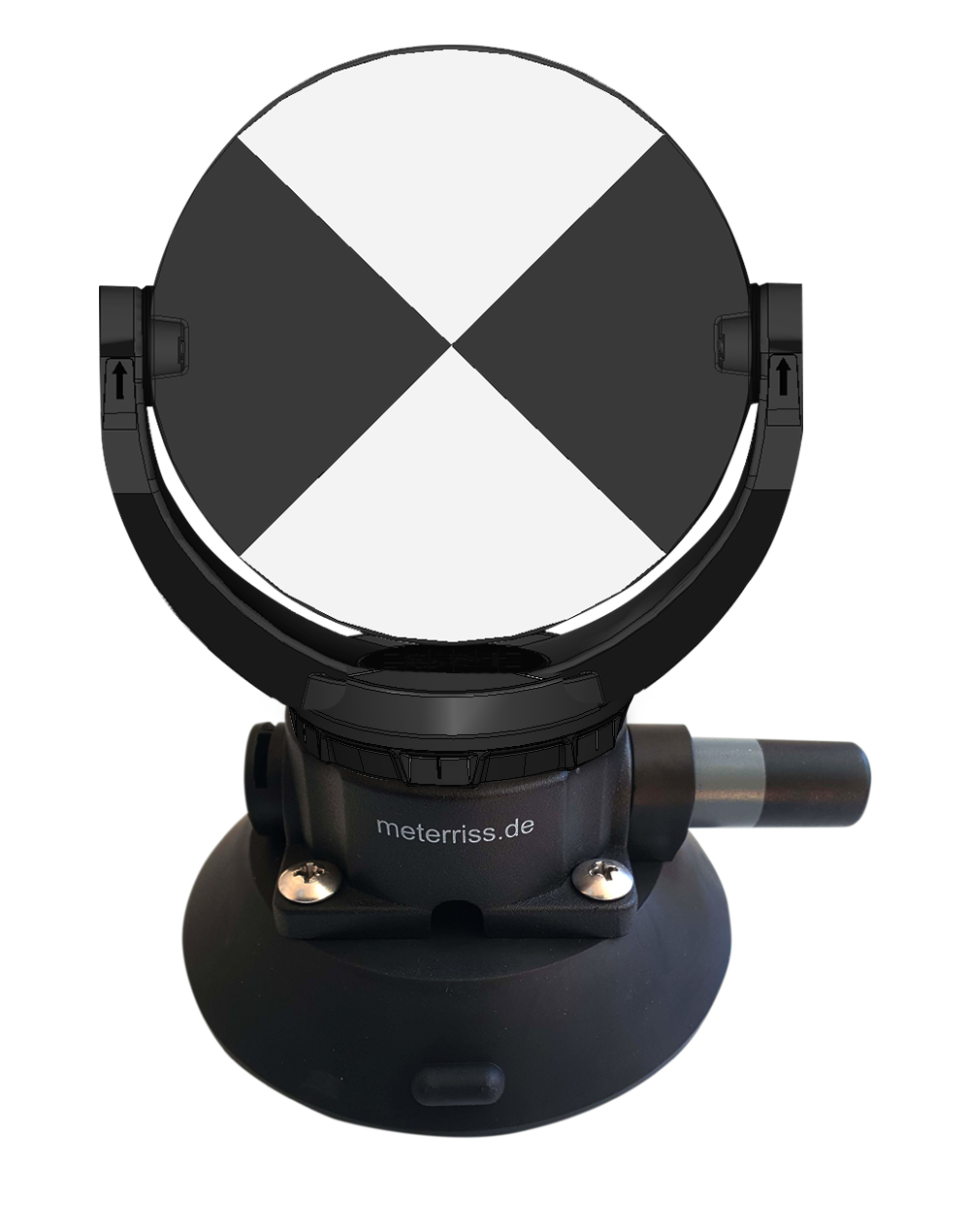

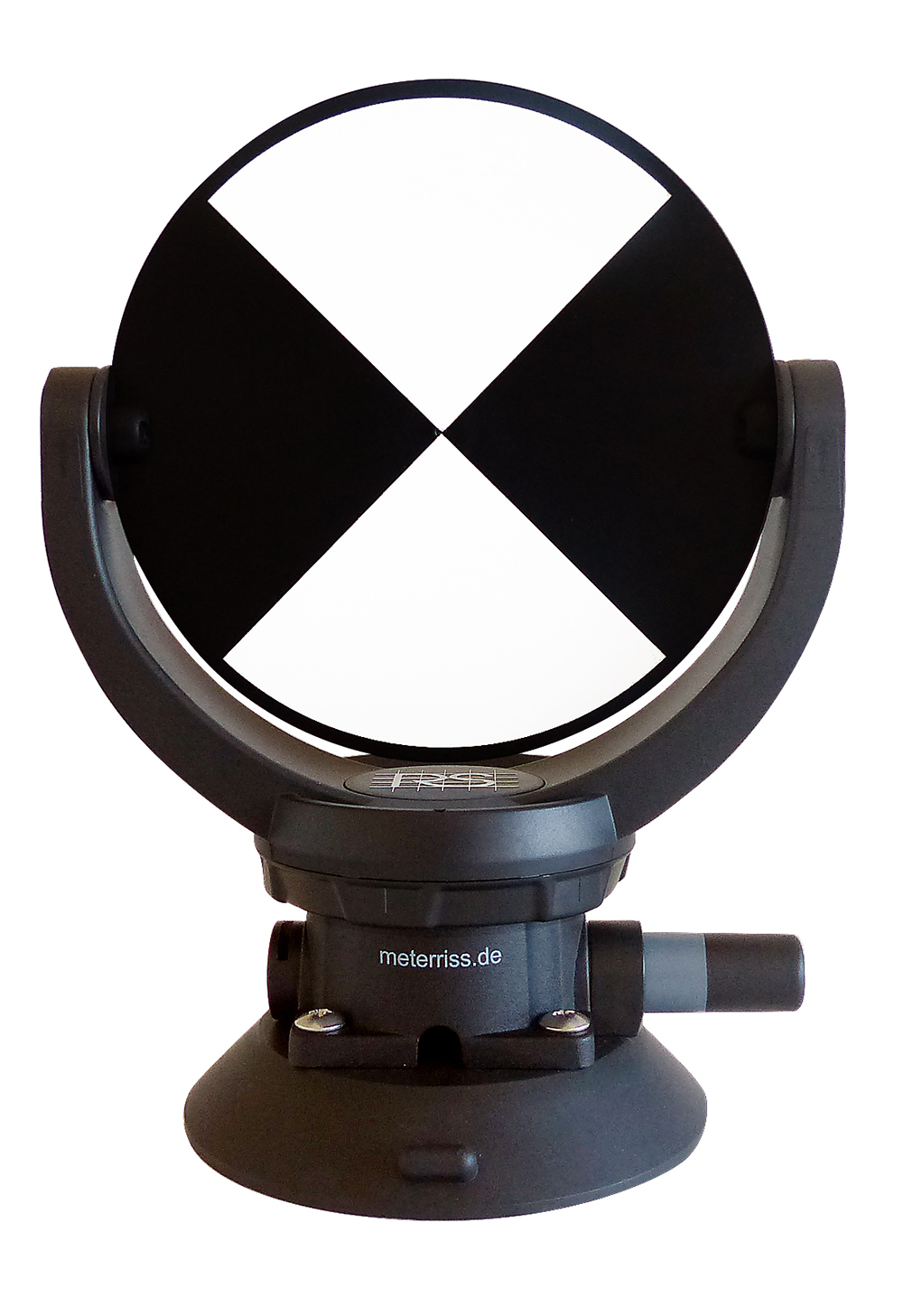

RSL422M on suction cup RSSV-X90

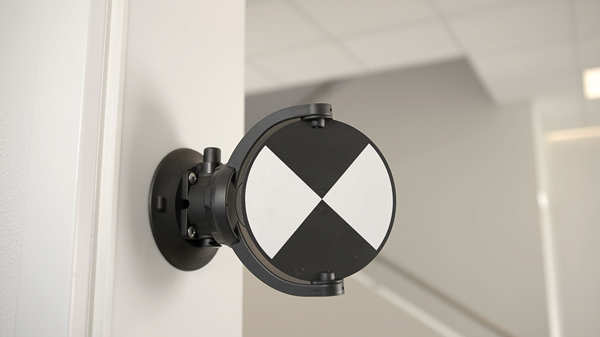

Enables the use of the laser scanner target on any smooth surface such as glass or smooth furniture fronts without drilling or gluing!
RSL420M / RSL422M also available in the suitcase set:
KS2, KS2-2, KS2-3

Compactly and safely packaged, practical and quickly to hand – our suitcase sets, the ideal companion: Everywhere.

Ideal for 3D inside and outside measurements:

The targets RSL420M and RSL422M also available as Suitcase Set KS2-420M/422M, KS2-420M/422M-2 and KS2-420M/422M-3

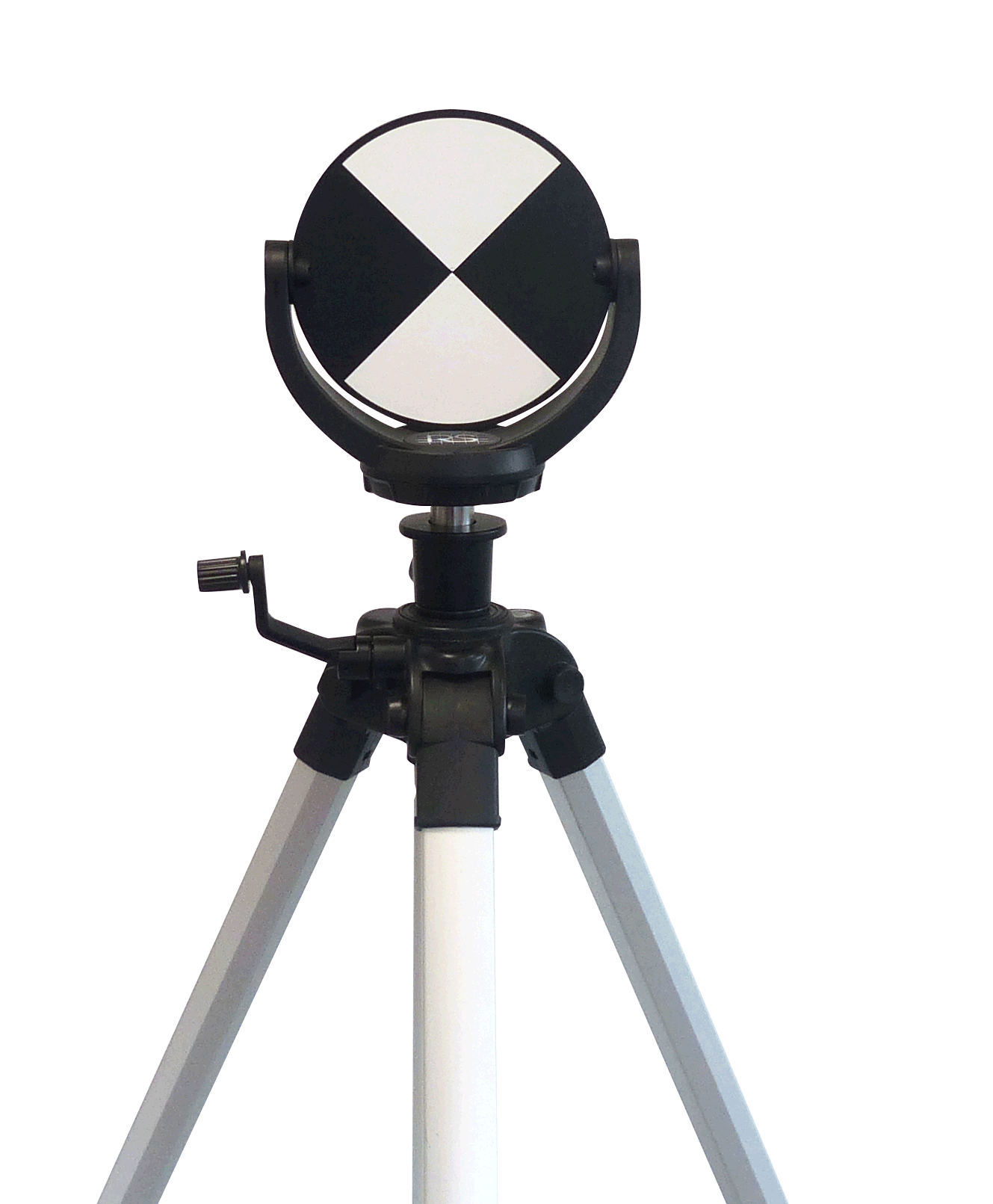

Products with tilting axis height 100 mm
RS Products with tilting axis height 100 mm
RS products with tilting axis height 100 mm



Dimensioning file RSL420M and RSL422M.pdf for download.
Here you find a dimensioning file for each RS product
